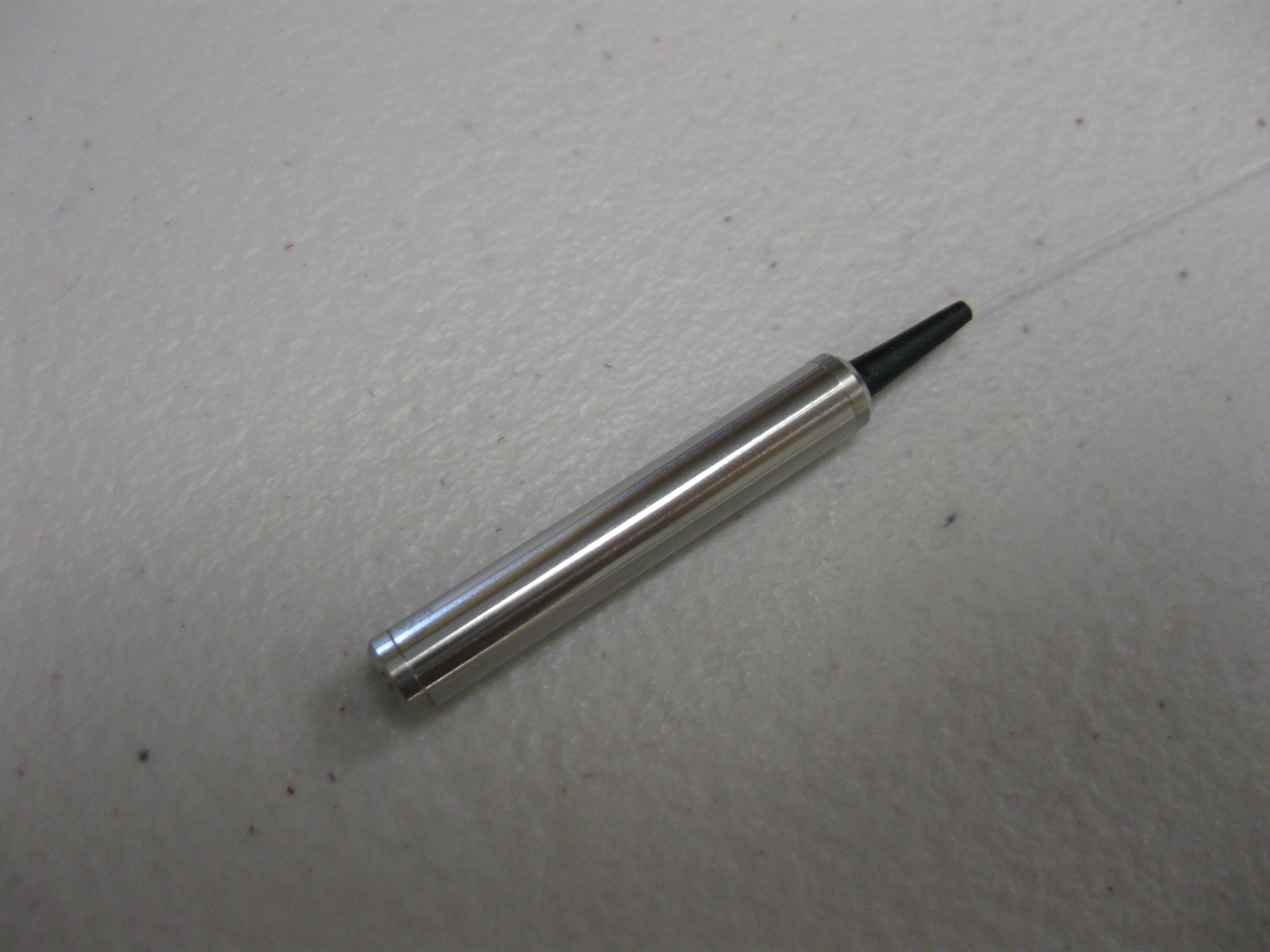

Fiber Faraday Mirror

For High Power Fiber Lasers, Sensing, and Coherent Detection

Download PDF

WSP's PM Fiber Faraday Mirrors are designed to preserve the input PM light with high fidelity and with lowest possible insertion losses.

In a fiber Faraday mirror, the linearly polarized light travels in along a specific fiber polarization axis and reflected back along a 90 rotated, orthogonal direction. It can be used to compensate polarization mode dispersion (PMD) and to cancel other polarization related effects

WSP's fiber Faraday mirrors are distinguished with their high isolations, wide fiber selection, and high polarization extinction ratios.

Features

  • Low insertion loss
  • High isolation
  • High extinction ratio
  • Integration with other functions are available
  • Customer wavelength & configurations available

Applications

  • Fiber lasers and amplifiers
  • Ultrafast systems
  • Fiber sensors
  • EDFAs

Technical Data

Parameter Unit Specification
Operating Wavelength nm 1310, 1450, 1480, 1550, 1580 1064 1030
Pass Band nm +/- 15 +/-5 +/-5
Insertion Loss dB < 0.6 (typical 0.4) < 2.8 (typical 2.6) < 6 (typical 5.2)
Extinction Ratio dB > 20 > 20 > 20
Fiber Type PM15, PM13, PM-LMA, single- & dual-clad, or specify PM98, PM-LMA, single- & dual-clad, or specify PM98, PM-LMA, single- & dual-clad, or specify
Power Handling mW 500 150 40
Dimension mm Ø5.5 x 35 Ø5.5 x 35 Ø5.5 x 35
Operating Temperature -5 ~ 70 -5 ~ 70 -5 ~ 70
Storage Temperature -40 ~ 85 -40 ~ 85 -40 ~ 85
