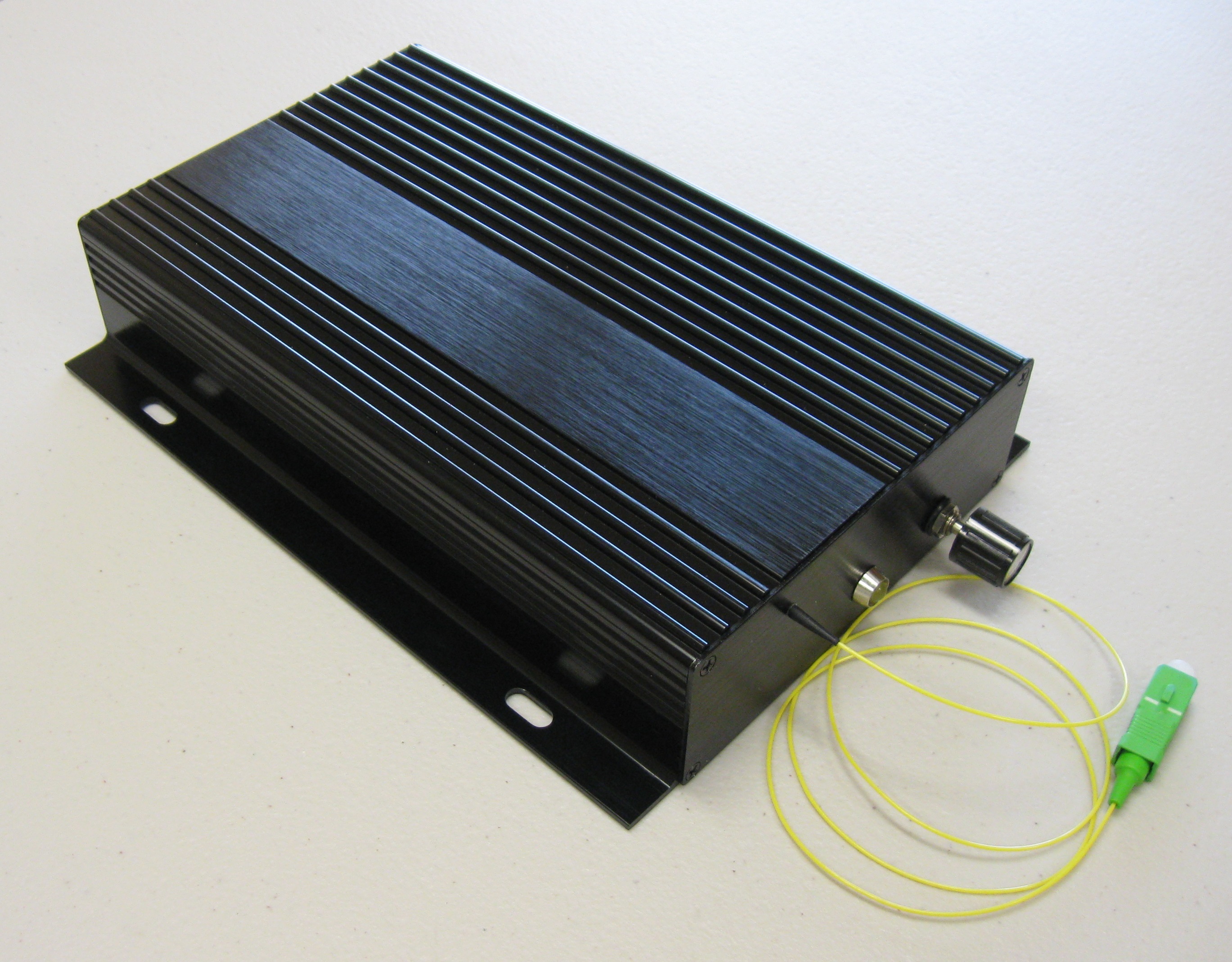

Turnkey Fiber Coupled Laser Sources

For Fiber Sensing, Biomedical Imaging, and Testing Applications

Download PDF

The fiber coupled laser source series Y10L and E15L cover wide ranges of laser parameters: wavelengths, linewidths, output powers, continuous wave or pulsed, and PM fiber coupled or non-PM fiber coupled.

The Y10L and E15L can deliver 1 - 30mW of output power at the near infrared wavelength regions. With a typical >27dB polarization extinction ratio, the PM fiber version of Y10L and E15L satisfy the highest demands for precision component testing in fiber laser, fiber communication, and fiber sensing markets.

The driver used on the Y10L and E15L fiber lasers has a proprietary design that makes the laser perform well beyond the industry standard. Key features of our fiber laser modules are low Intensity noise and exceptional wavelength stability. This rare-earth fiber design allows for a higher degree of power and wavelength stability than conventional DFB and DBR, or FP lasers.

Features

  • Single-mode fiber output
  • Wide wavelength selection
  • Power and spectrum stabilization
  • PM Fiber version
  • Build in isolator
  • Build-in power adjustment and power monitoring
  • Customer wavelength available
  • Excellent short- & long-term stabilities

Applications

  • Optical component testing
  • Optical fiber sensing
  • Biomedical imaging

Technical Data

Specification Y10L series E15L series
Standard wavelength [nm] 1030, 1064 1550
Other wavelength [nm] 1000 - 1100 1530 - 1565
PM Yes Yes
Polarization Mode Linear, along slow-axis Linear, along slow-axis
Polarization Extinction Ratio [dB] > 27 > 27
Output Coupling SM98-PM fiber SM15-PM fiber
Fiber-Coupled Output Power [mW] 5, 10, 20, 30 5, 10, 20, 30
Power Adjustment Front panel 10-tern knob Front panel 10-tern knob
Output Power Calibration Yes
Operating Temperature 0 °C to 45 °C
Dimension [cm] 20 x 12 x 4 (LxWxH)
