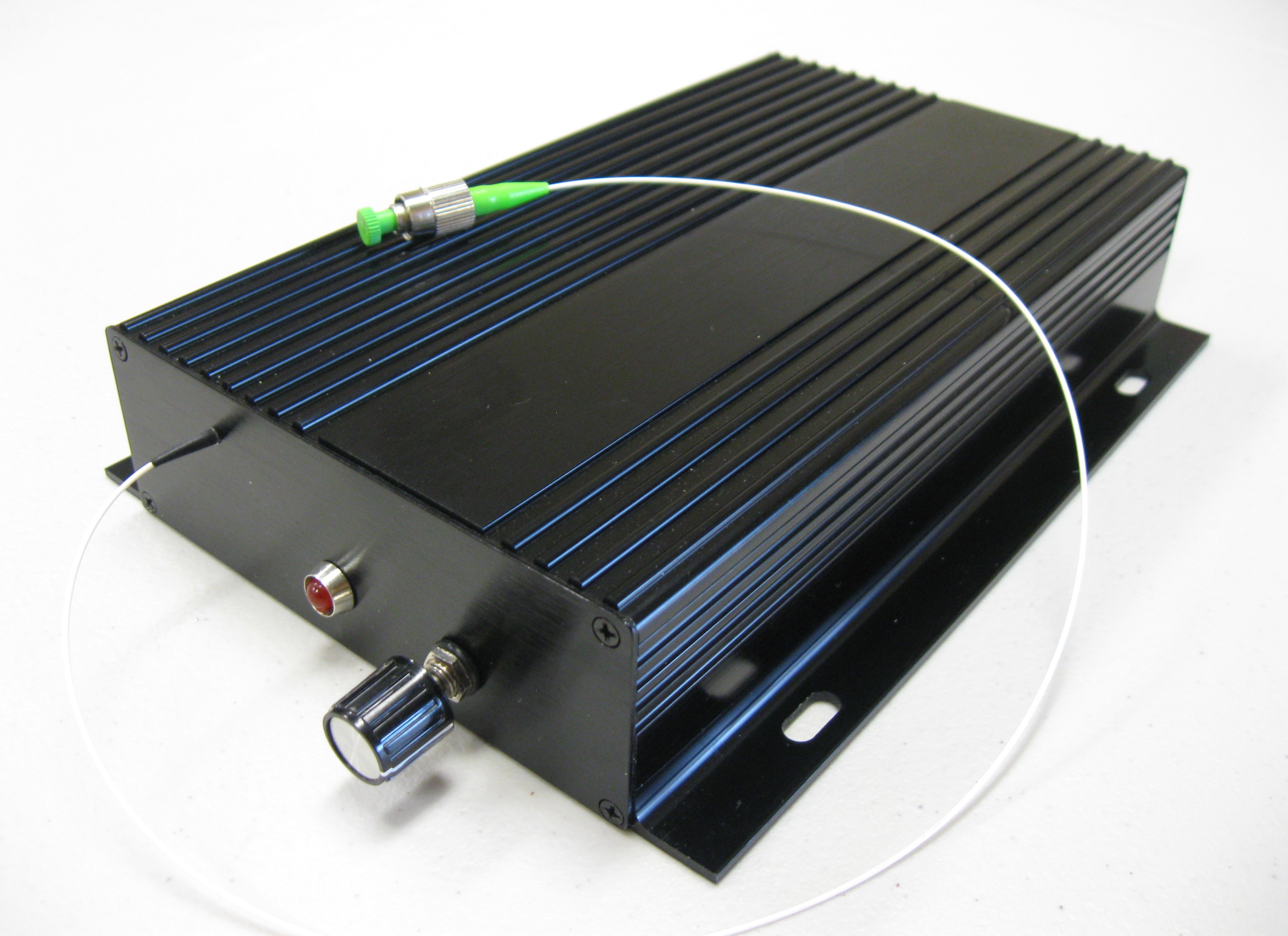

The ASE1003PM high power broadband light source delivers more than +13dBm of output power across the 1 µm (900-1150 nm) or 1.5µm (1525-1610 nm) wavelength regions. With a typical >27dB polarization extinction ratio, this ASE source satisfies the highest demands for precision component testing in fiber laser, fiber communication, and fiber sensing markets.
The ASE1003PM uses a proprietary design to perform beyond the industry standard. Key features include low intensity noise, broadband output, and exceptional wavelength stability. These new generation ASE sources have no high frequency ripples, which makes them very useful for sensor interrogation applications. The output fibers are PM98 or PM15 single-mode fiber.
Features
- High output power
- Wide spectral range
- High power and spectrum stabilities
- PM Fiber
- Build-in power attenuation and monitoring
- Customized design flexibility
Applications
- Optical component testing
- Optical fiber sensing
- Biomedical imaging
Technical Data
| Specification | W103-310-PM98 | W155-310-PM15 |
|---|---|---|
| Wavelength Range [nm] | 900-1150 | 1525-1610 |
| Peak Wavelength [nm] | 1030 | 1550 |
| Polarization Mode | Linear, along slow-axis | Linear, along slow-axis |
| Polarization Extinction ratio | > 27dBm | > 27dBm |
| Output Coupling | SM98-PM fiber | SM15-PM fiber |
| Fiber-Coupled Output Power | 30 mW | 30 mW |
| Power Adjustment | front panel 10-tern knob | front panel 10-tern knob |
| Output Power Stability | < 0.1% | |
| Lifespan | 10 000 Hours (Avg.) | |
| Operating Temperature | 0 °C to 45 °C | |
| Drive Power | 5VDC | |
| Included Power Supply | Universal AC/DC Converter, 100 - 240 VAC | |
| Dimension [mm] | 205 x 120 x 40 (LxWxL, mm) | |
