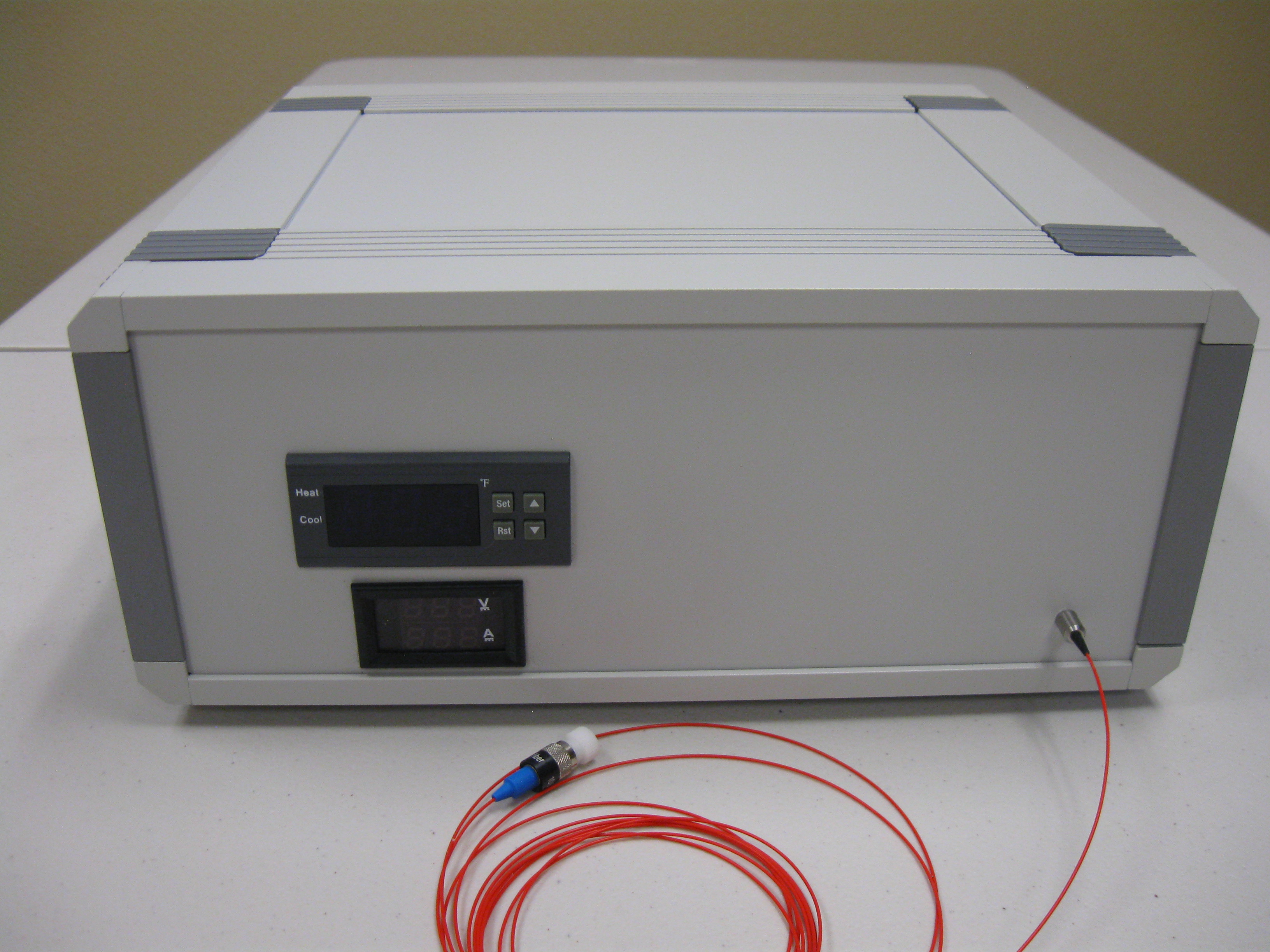

The Y10H series and E15H series high power fiber lasers can deliver up to 15W of power through polarization- maintaining (PM) single mode output fibers. They are maintenance-free single frequency lasers. You can choose the operating wavelength freely in the 1 or 1.5 μm range. Their excellent beam quality enables efficient frequency conversion into visible and UV wavelengths.
All-fiber design guarantees the robustness of the laser, eliminating any alignment of free-space optical parts and risk of mis-alignment over time and use. Excellent beam quality from single-mode fiber and the power stability nature make them the ideal solution for use in various industrial and scientific applications.
Features
- Up to 15W output power at 1.0μm or 1.5μm
- Single frequency, narrow linewidth
- Ultra-low intensity & frequency noise
- Excellent beam quality-- ideal for frequency conversion
- Unlimited center wavelength selection in the ranges of 1050 -1090nm & 1540 - 1570nm
- Robust, maintenance free fiber laser
Applications
- Nonlinear optics pump source
- Frequency conversion
- Laser based metrology
- Lidar
- Spectroscopy
Technical Data
| Specification | Y10H series | E15H series |
|---|---|---|
| Standard wavelength [nm] | 1030.0, 1064.3 | 1550.12 |
| Other wavelength [nm] | 1000 -- 1100 | 1530 - 1565 |
| PM | yes | yes |
| Polarization Mode | Linear, along slow-axis | Linear, along slow-axis |
| Polarization Extinction ratio | > 27 | > 27 |
| Output Coupling | SM98-PM fiber | SM15-PM fiber |
| Fiber-Coupled Output Power [W] | 3, 5, 10, 15 | 2, 5, 10 |
| Power Adjustment | front panel 10-tern knob | front panel 10-tern knob |
| Display | Drive Current, LD temperature | Drive Current, LD temperature |
| Output Power Calibration | yes | |
| Operating Temperature | 0 °C to 45 °C | |
| Dimension [mm] | 307 x 260 x 125 (LxWxH, mm) | |
