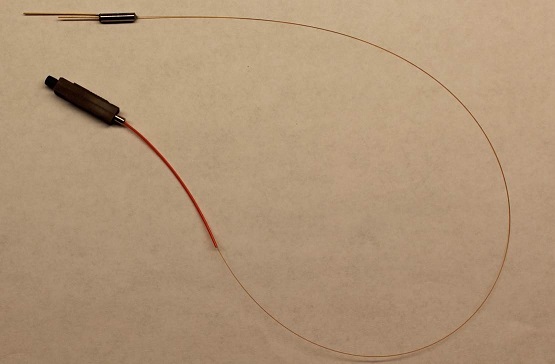

WSP's Fiber Pigtailed PDs use the miniature TO-25 can sealed InGaAs chips coupled with input fibers. The Fiber Pigtailed PDs have high and linear responsivity over wide input power range and wavelength range.
Due to their miniature size, they are ideal for tight space applications and for dense multiple detector assemblies. The fiber pigtailed PDs have a diameter of 3.0mm and a length of 12mm. The PD’s case is electrically isolated from their two leads, which prevents electrical shortage if packed in proximity to conductive materials or when they are assembled as an array.
The choice for fiber type, length, and connectors are flexible per request.
WSP's Fiber Pigtailed PDs have long been used in medical instrumentation, sensing and fiber laser industries, due to their stable and reliable performance.
WSP can provide customized designs to meet specialized applications.
Features
- Two leads with electrical isolation to package
- High Responsivity
- Linear Responsivity
- Low Dark Current
- High Reliability (GR-468-Core)
- Integration with other functions are available
- Customer wavelength and configurations available
Applications
- Fiber optic communication
- Sensing system
- Instrumentation
Technical Data
| Parameter | Unit | Specifications |
|---|---|---|
| Operating Wavelength | nm | 980 ~ 1620 |
| Fiber | PM850, PM780, PM98, PM13, PM15, SMF28, HI1060, single- and double-clad PM-LMA, or customer specify | |
| Responsivity @ 1260nm | mA/W | >0.6 @1260nm |
| Dark Current | nA | ≤1.0 (@25℃, 5V bias) |
| Polarization Extinction Ratio | dB | >25 (for PM fibers) |
| Maximum Input Power | mW | 1000 |
| Return Loss @1260nm | dB | >= 35 |
| Dark Current | nA | ≤1.0 (@25℃, 5V bias) |
| Reverse Voltage | V | <=30 |
| -3dB Bandwidth | GHz | >=1.5 |
| Dimension | mm | Ø3.0X12 |
| Operating Temperature | °C | -5 ~ 70 |
| Storage Temperature | °C | -40 ~ 85 |
| * for some LMA fibers PERs ares limited by fiber PERs | ||
