WSP’s high power pump and signal combiners feature excellent performance. These devices can be used to combine the power from one to several pump laser diodes into a double clad fiber (DCF) that has a signal core.
WSP’s high power pump and signal combiners offers very efficient pump power with the best signal quality transmission. They are designed to meet a wide range of power handling configurations and a large selection of input/output fiber types.
These combiners are designed to address industrial and research applications.
Features
- High Power Transfer Efficiency
- Large selection of input and output fiber
- Polarization maintain (PM) fiber and non-PM fiber
- Wavelength Insensitive
- Custom Configurations Available
Applications
- High power fiber lasers
- Seed and power fiber amplifiers
- Industrial & Research
Technical Data
| Parameter | Unit | Nominal | Min | Max |
|---|---|---|---|---|
| Signal Operating Wavelength | nm | 1030, 1064 | 1000 | 1100 |
| Pump Operating Wavelength | nm | 800 | 1000 | |
| Signal Fiber | PM98, HI1060, 5/130, 10/125. 15/130, 20/130, or 25/250, single-clad and double-clad, PM or Non-PM, or specify | |||
| Pump fiber | um | 105um/125um/0.22 or specify | ||
| Output Fiber | 5/130, 10/125. 15/130, 20/130, 25/250, 30/250 double-clad, PM or Non-PM, or customer specify | |||
| Pump Efficiency | % | 95 | 94 | |
| Signal IL | dB | 0.5 | ||
| Pump Power Handling (per port) | 10, 20, 30, 50 | |||
| PER | dB | 22 | 20 | |
| Isolation | dB | 25 | ||
| M2 | 1.3 | |||
| Return Loss | dB | 45 | ||

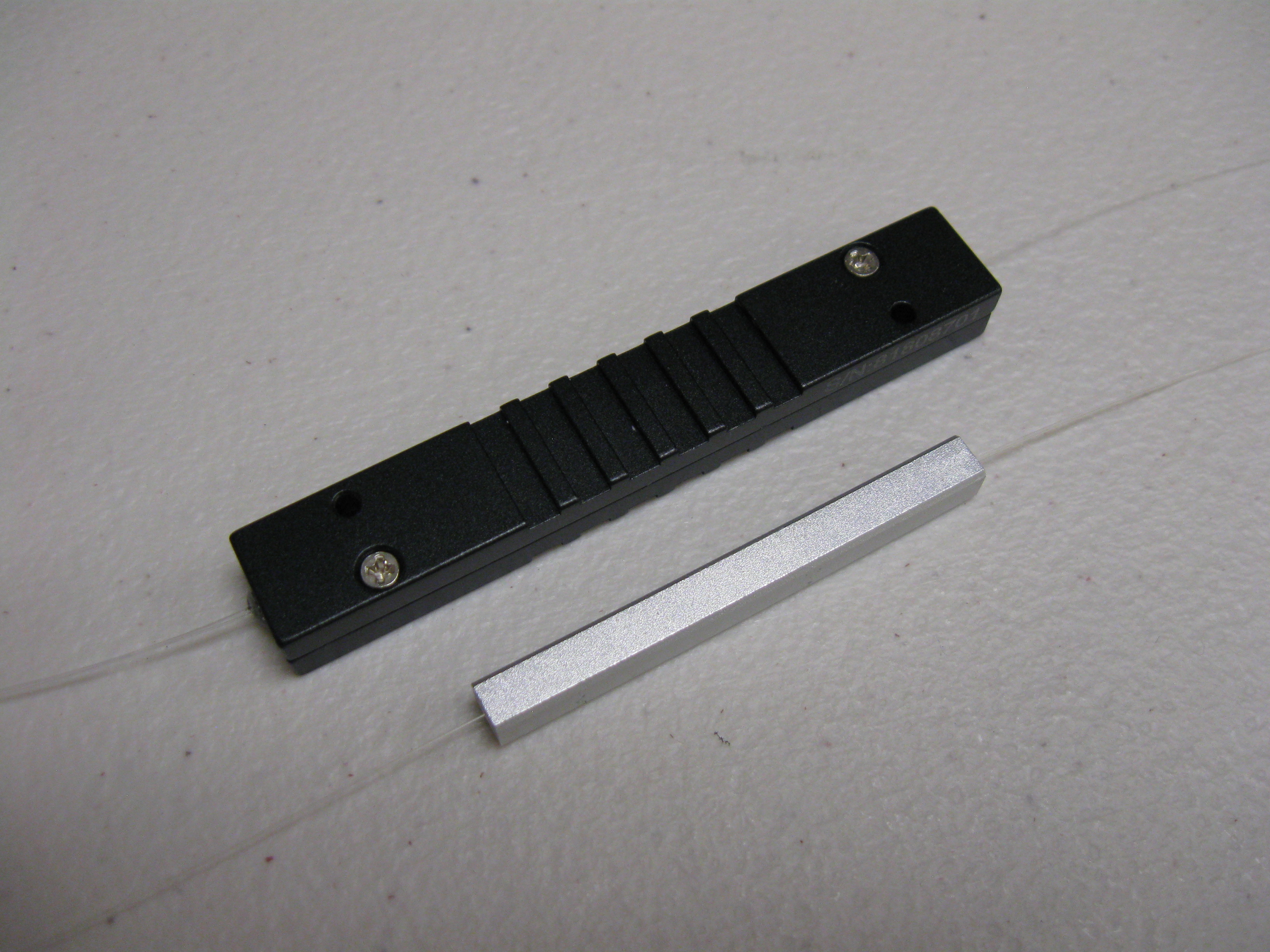

| Dimension | mm | 50x5x5 (LxWxH) (C1 package), or 70x12x8 (A1 package) | ||
| Operating Temperature | ℃ | -5 | 70 | |
