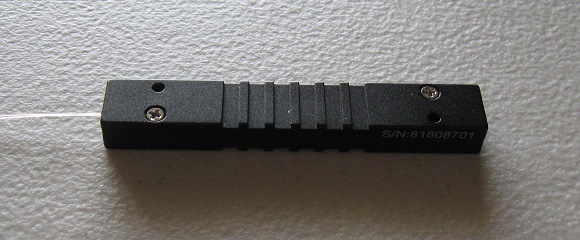

WSP's Pump Laser Protector is designed to block the unwanted back-reflected optical energies that damage the coating or chip of a pump laser while allows maximum transmission of fiber-coupled pump laser diode.
WSP's pump protectors are characterized with low insertion loss, high return loss, and work under high power condition. They are available at various wavelengths and fiber types (SMF, LMAF, MMF).
Other functions can be integrated into the pump protector as well; such optical isolator and tap splitting for monitoring back reflected powers.
WSP can provide customized designs to meet specialized applications.
Features
- Low insertion loss
- High Isolation
- High power handling
- High extinction ratio
- Integration with other functions available
- Extremely high power version available
Applications
- High power fiber lasers and amplifiers
Technical Data
| Parameter | Unit | Specifications | ||
|---|---|---|---|---|
| Operating Wavelength | nm | 980/1030-1064 | 980/1550 | 1018/1064 |
| Pass Band | nm | 900 ~ 1000 | 900 ~ 1000 | 1040 ~ 1070 |
| Reflection Band | dB | 1020 ~ 1120 | 1500 ~ 1600 | 1000 ~ 1030 |
| Insertion Loss | dB | <0.6 | <0.6 | <0.8 |
| Isolation | dB | >25 | >25 | >25 |
| Return Loss | dB | >30 | >30 | >30 |
| Input Fiber |
SMF: PM980, HI1060, SMF28, or specify LMAF: 10/125, 15/125, 20/130, 25/250, 30/250um, or specify MMF: 50/125, 62.5/125, 105/125, or specify |
|||
| Output Fiber |
SMF: PM980, HI1060, SMF28, or specify LMAF: 10/125, 15/125, 20/130, 25/250, 30/250um, or specify MMF: 50/125, 62.5/125, 105/125, or specify |
|||
| Power Handling | W | 1, 2, 3, 5, 10, 20 or specify | ||
| Dimension | mm | Ø 5.5 x L35, or 70 x 12 x 9 | ||
| Operating Temperature | °C | 0 -- 70 | ||
| Storage Temperature | °C | -40 -- 85 | ||
